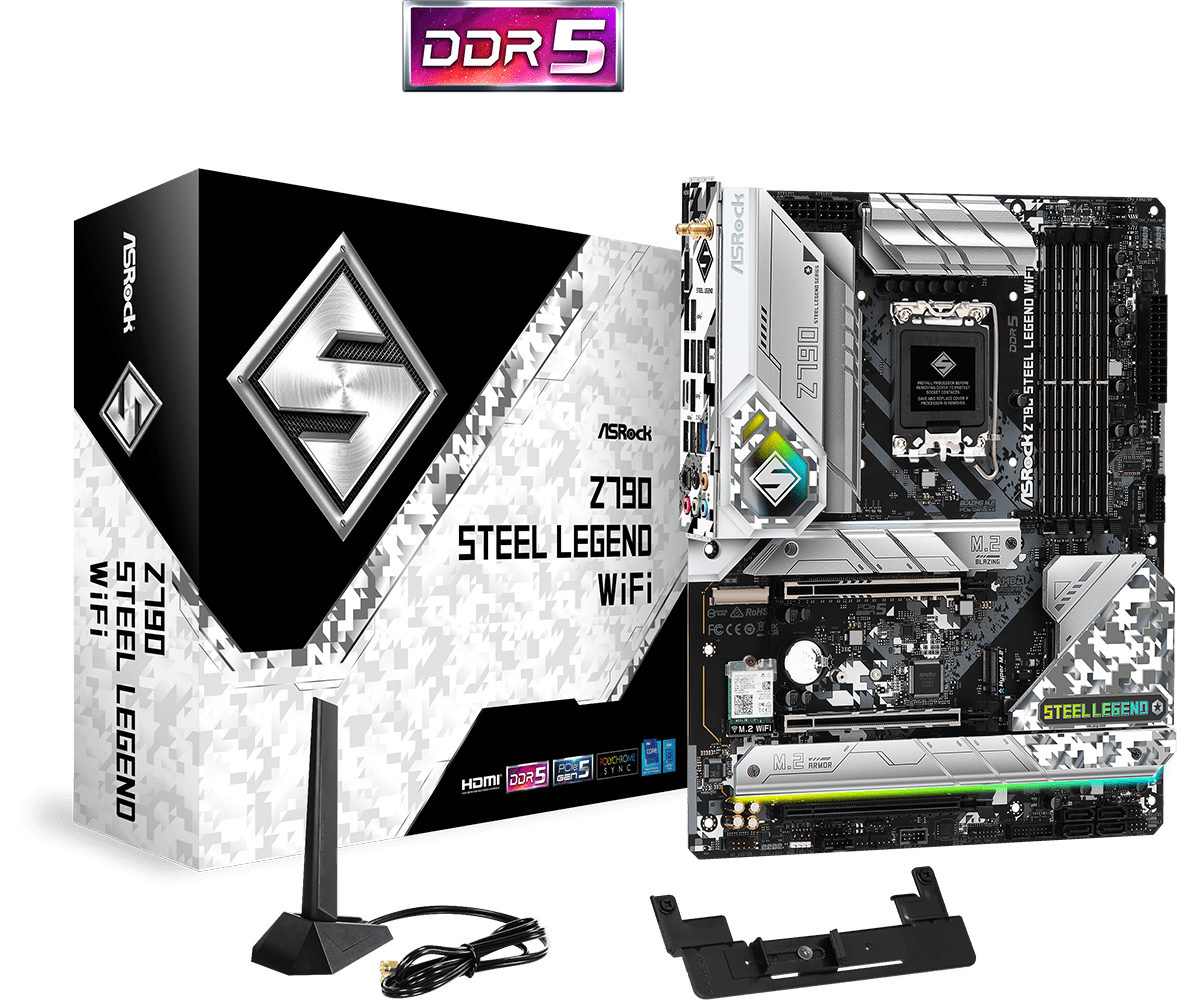

ASRock Z790 Steel Legend WiFi Bundkort - Intel Z790 - Intel LGA1700 socket - DDR5 RAM - ATX

Bundkort, størrelse: ATX, Intel LGA1700 socket, Intel Z790 chipset, 1 x PCI-Express 5.0 x16, Dual DDR5-5600 4 x DIMM slots, lagrings tilslutninger: 8 x SATA-600 / 4 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A & C, skærm tilslutning: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek 8125BG 2.5 Gigabit netværk (LAN), WiFi 6E & Bluetooth 5.2, Intel Xe Graphics supporteret (CPU med VGA påkrævet), Realtek ALC897 HD Audio (8-kanaler) lydkort, ASRock Polychrome SYNC software...

Audio Codec: Realtek ALC897, BIOS Properties: UEFI BIOS, BIOS Type: AMI, Width: 30.5 cm, Bus Clock: 4800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6800 MHz (O.C.), 3600 MHz, 4400 MHz, Depth: 24.4 cm, Features: Dual-channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, Expansion Slots: 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 5.0 x16 (slot converted to x8 mode when an SSD is mounted on the fifth M.2 slot) | 1 x PCIe 4.0 x16 (x4 mode) | 1 x PCIe 3.0 x16 (x2 mode) | 1 x M.2 socket (2230 M.2 Key E slot) | 2 x (2260/2280 M.2), Interfaces: 1 x HDMI | 1 x DisplayPort | 1 x USB-C 3.2 Gen 2 | 1 x USB 3.2 Gen 2 | 8 x USB 3.2 Gen 1 | 2 x antenna | 1 x audio output (rear surround) - mini-jack | 1 x microphone - mini-jack | 1 x audio input - mini-jack | 1 x audio output (front surround) - mini-jack, Hardware Features: ASRock Instant Flash, 15µ Gold Contact, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, 6 Layer PCB, ASRock EZ Mode, Nichicon 12K Black Caps, 2oz Copper PCB, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Ma, Included Accessories: 4 x M.2 screws, ASRock graphics card holder, ASRock WiFi 2.4/5/6 GHz antenna, Internal Interfaces: 1 x USB-C 3.2 Gen 2x2 - header | 4 x USB 3.2 Gen 1 - header | 3 x USB 2.0 - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x SPI - header | 1 x speaker - header, Compatible Processors: (supports 12th and 13th generation Intel Core / Pentium Gold / Celeron), Chipset Type: Intel Z790, Storage Interfaces: SATA-600 - connectors: 8 x 7 pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | PCIe 5.0 - connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 | PCIe 4.0 - connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 5, Maximum Size: 128 GB, Maximum Number of Processors: 1, Included Cables: 2 x Serial ATA cable, Included Software: ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, Network Interfaces: Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Network Controller: Dragon RTL8125BG, Processor Socket: LGA1700 socket, Registered or Buffered: Unbuffered, Standards Followed: FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3, CEC Tier II, Power Connectors: 24-pin main power connector, 2 x 8-pin ATX12V connectors, Supports Ram Integrity Check: Non-ECC, Technology: DDR5, Type: HD Audio (8 channels), Product Type: Motherboard - ATX.
