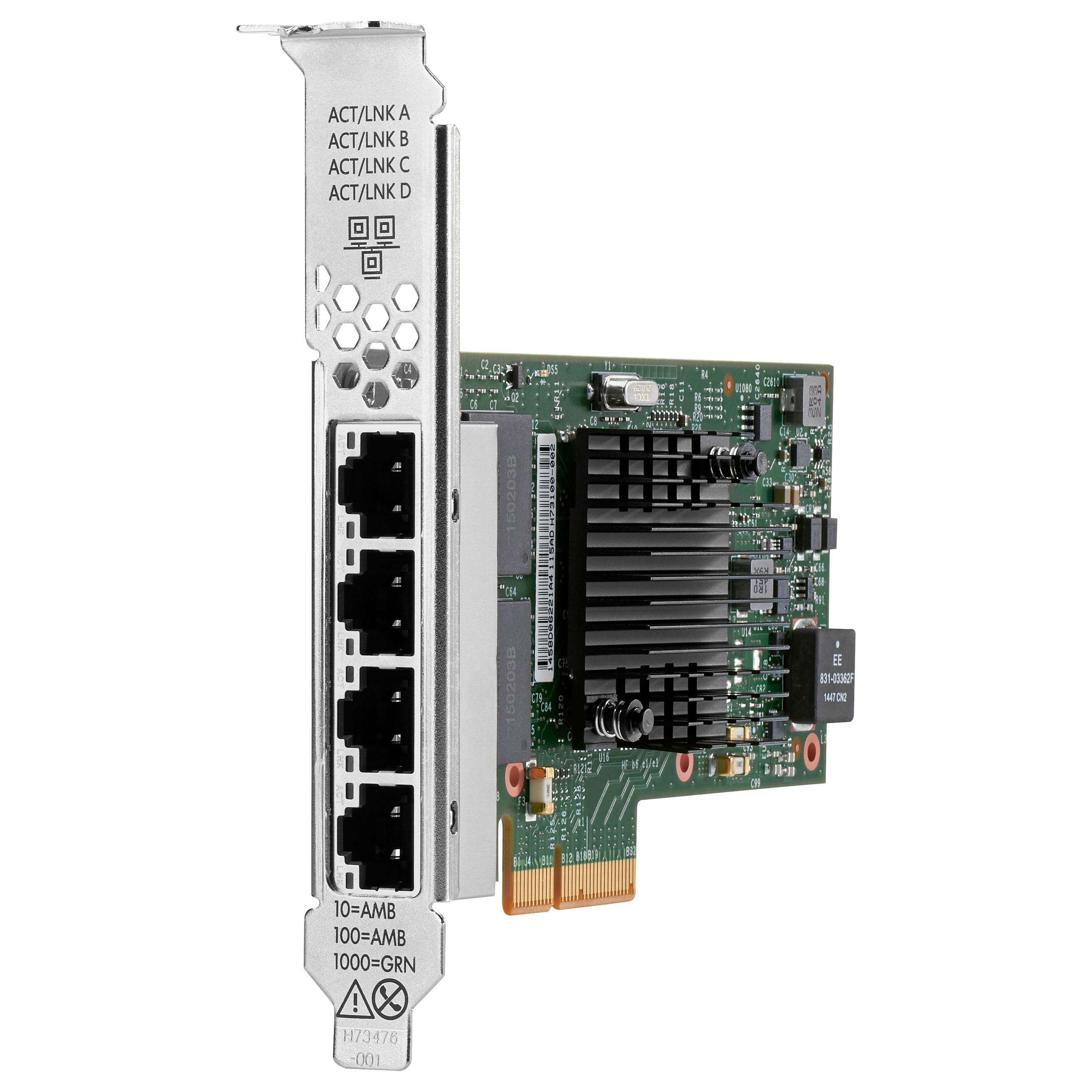

Broadcom BCM5719-4P - Netværksadapter - PCIe 2.0 x4 lavprofil - Gigabit Ethernet x 4

Broadcom BCM5719-4P - 4x1GbE PCIe NIC 1GBASE-T PCIe2 x4 Broadcom BCM5719-4P Broadcom BCM5719-4P, Internal, Wired, PCI Express, Ethernet, 1000 Mbit/s Broadcom BCM5719-4P. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s Designed for today's enterprise and data center environments, Broadcom's NetXtreme® 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports. The BCM5719 PCIe NIC is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The BCM5719 includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support VMWare® NetQueue and Microsoft® VMQ technologies. The BCM5719 includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs. Ports & interfaces Connectivity technology: Wired Host interface: PCI Express Interface: Ethernet Ethernet LAN (RJ-45) ports: 4 PCI version: 2.0 Network Maximum data transfer rate: 1000 Mbit/s Networking standards: IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Feature: Ethernet LAN Ethernet interface type: Gigabit Ethernet Ethernet LAN data rates: 10,100,1000 Mbit/s Cabling technology: 10/100/1000BaseT(X) Feature: Wake-on-LAN ready Feature: Full duplex Feature: Jumbo frames support Jumbo frames: 1500 Design
